EMAX BabyHawk II HD 03

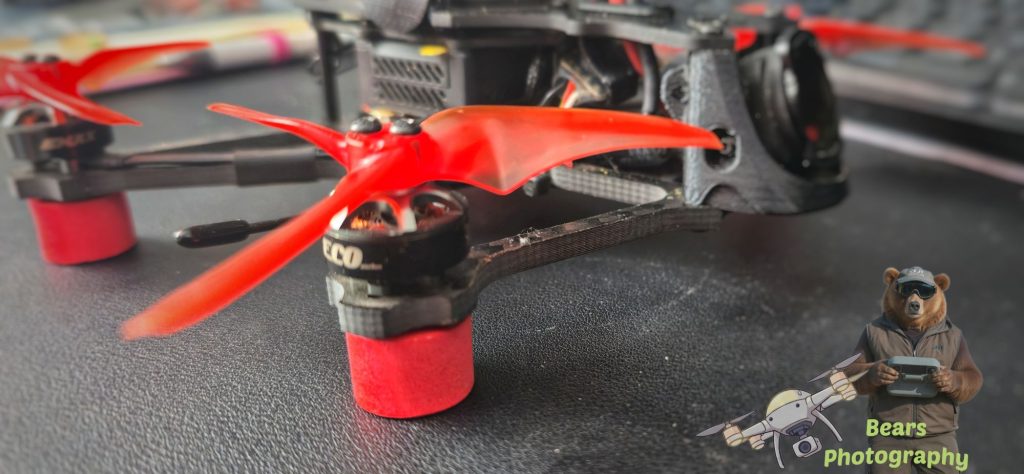

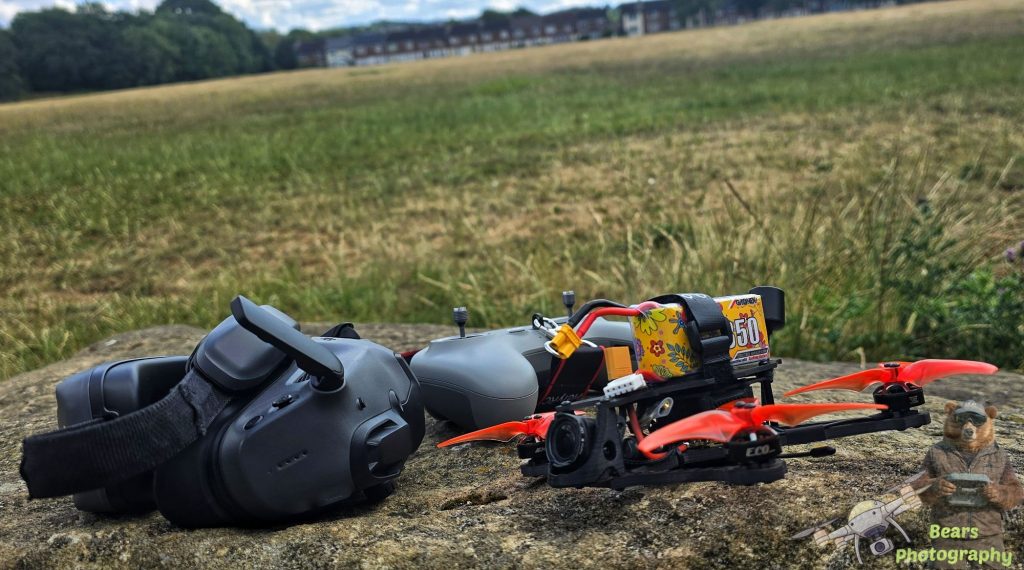

So i purchased this BabyHawk from a friend who has this setup using the TBS system, Now i have it i intend to use the babyhawk with both my DJI V2 googles and DJI Goggles 3 and there remotes. Todo this i need to put in the SBUS cable, GND cables and setup in Betaflight. I thought to document this as it can be a long process and cant really find anything online as a how to for anyone wanting todo this themselves. Here is abit about the drone before we get into it Jump to DJI 03 air unit diagrams or FC board layout

I have Made a tutorial for SBUS install and SBUS Baud Tutorial these are step by step guides and i have done a video to support each process.

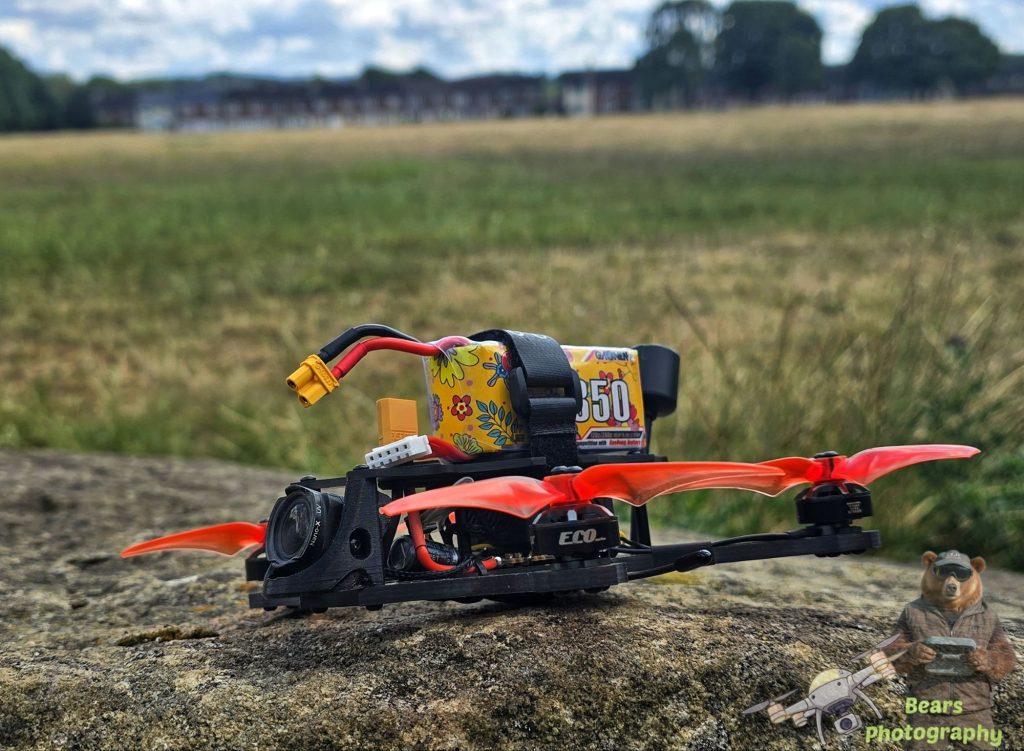

The EMAX Babyhawk II HD 3.5″ Micro DJI FPV Drone with TBS Crossfire Nano Race Edition is a high-performance micro drone designed to take your FPV experience to the next level. With its lightweight 155mm carbon fiber frame and ultra-efficient power system, this drone is perfect for both racing and freestyle flying.

Equipped with the EMAX ECO 1404 3700kv motors and Avan Scimitar 3.5″ tri-blade propellers, it delivers exceptional speed, control, and stability. The pre-tuned Betaflight firmware ensures smooth and optimized flight performance, and the integrated Caddx Vista HD camera brings stunning visuals through the DJI FPV system. Whether you’re a seasoned racer or just getting into FPV, the Babyhawk II HD offers seamless DJI HD FPV experiences.

Key Features:

• Lightweight Carbon Fiber Frame: 155mm frame with durable design for high-speed racing and freestyle flights.
• High-Performance Power System: ECO 1404 3700kv motors paired with Avan Scimitar 3.5” props for maximum power and control.
• Integrated DJI FPV System: Caddx Vista with Polar camera for crystal-clear HD FPV video.
• Mini Magnum Tower System: F4 STM32F411 flight controller with 25A BLHELI-S ESC, optimized for 3-4s LiPo batteries.
• TBS Crossfire Compatible: Built-in Crossfire Nano receiver for long-range control.
• Pre-Tuned Betaflight Firmware: Optimized settings for excellent flight performance right out of the box.
• Lightweight: Weighs only 139 grams for a nimble and responsive flying experience.

Specifications:

• Frame Size: 155mm (3.5″ micro drone)
• Weight: 139 grams
• Motor: EMAX ECO 1404 3700kv brushless motors
• Propellers: Avan 3.5″ tri-blade propellers
• Power System: Magnum Mini tower system with F4 STM32F411 flight controller and 25A BLHELI-S ESC
• Battery Compatibility: 3-4s LiPo batteries
• Integrated FPV System: Caddx Vista with Polar Camera
• Receiver: TBS Crossfire Nano
• Firmware: Pre-tuned Betaflight firmware
• Compatible Protocol: TBS Crossfire Nano for long-range control(have have disconnected this and now use the SBUS system

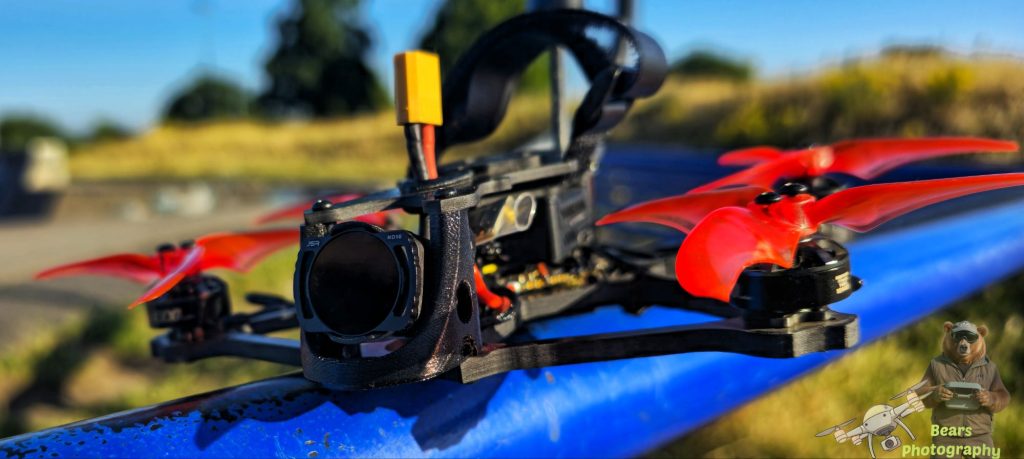

ND Filters nothing amazing, I thought togo with something not well known brand wise just to try out and see what the results are. these lenses fit the DJI 03 air unit that i have in the Babyhawk and also fit the DJI AVATA. so hopefully these are good when i try them The ND Filters are really good and i love that they fit the AVATA 1 aswell(What are ND Filters)

link to the filters here

Now the SBUS is installed time to have fun and play with he rates abit to my liking.
