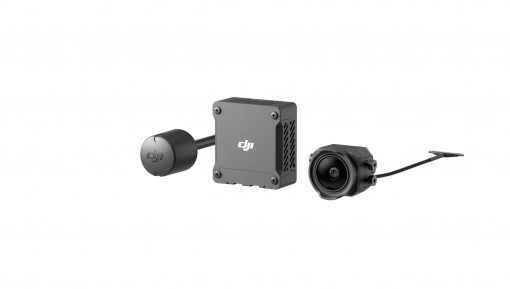

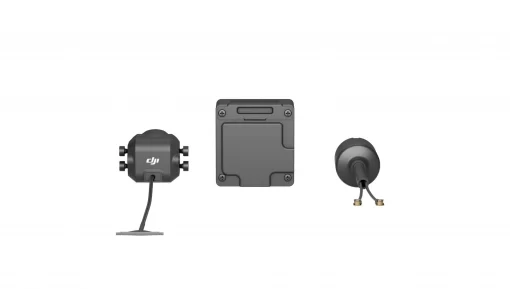

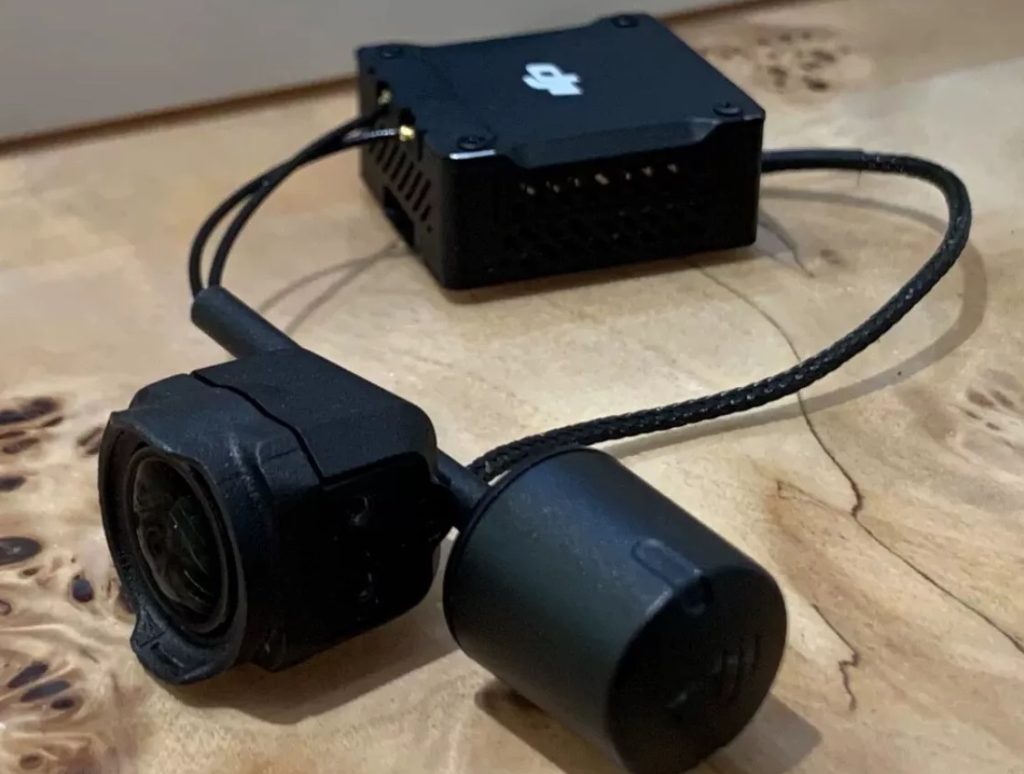

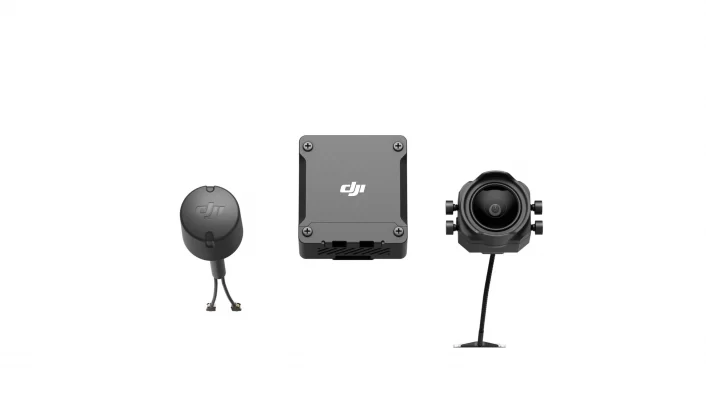

DJI 03 Air Unit

DJI O3 Air Unit for FPV Drone, Digital Transmission System, 10km Max Range, 1080p/100fps H.265 Video Transmission, Compatible with DJI Goggles 3, DJI FPV Remote Controller 3, DJI Goggles 2, and more

About this item

1080p/100fps H.265 Max Video Transmission Quality – The DJI O3 Air Unit features a 1080p/100fps max transmission quality, letting users experience crystal-clear feeds for hyper-immersive flight

10km Max Video Transmission Range – Enjoy a clear transmission feed from distances of up to 10 km, letting you fly further and capture more with any build

30ms Lowest Video Transmission Latency – Experience snappy, lightning-fast responsiveness to your controls thanks to the DJI O3 Air Unit’s 30ms ultra-low latency

1/1.7-inch CMOS Sensor – With a 1/1.7-inch sensor, the DJI O3 Air Unit captures high-quality footage that gives creators greater flexibility in post-production

4K/60fps, 155° Super-Wide FOV Video – Capture more in every frame with a wide FOV and 4K/60fps high-quality foot

03 Air Unit High lights

• 30 ms 10 km Digital Video Transmission
• 1080p/100fps H.265 Video Transmission
• 4K/60fps Video Recording
• Frequency Auto-Switching
• 155° Super-Wide FOV
• Canvas Mode Support

Camera

• Sensor : 1/1.7-inch CMOS
  Effective Pixels: 48 MP
• Lens : FOV: 155°
  Equivalent Focal Length: 12.7 mm
  Focal Length: 2.34 mm
  Aperture: f/2.8
  Focus Mode: FF
  Focus Range: 0.6 m to ∞
• ISO Range :100-6400 (Auto)
  100-25600 (Manual)
• Shutter :Rolling Shutter
• FOV :155°
• Video Resolution :With DJI Goggles 2:
  4K@50/60fps
  2.7K@50/60/100fps
  1080p@50/60/100fpsWith DJI FPV Goggles V2:
  4K@50/60fps
  2.7K@50/60/100/120fps
  1080p@50/60/100/120fps
• Video Format: MP4, EIS :Supports RockSteady
• Weight :Approx. 8.3 g (coaxial cable included)

Air Unit

• Weight:  Air Unit (camera module excluded): Approx. 28 g
  Air Unit (camera module included): Approx. 36.4 g
  Antenna: Approx. 3 g
• Dimensions :  Transmission Module (L×W×H): 32.5×30.5×14.5 mm
  Camera Module (L×W×H): 21.2×20×19.5 mm
  Coaxial Cable: 115 mm
  3-in-1 Cable: 100 mm
  Antenna: 85 mm

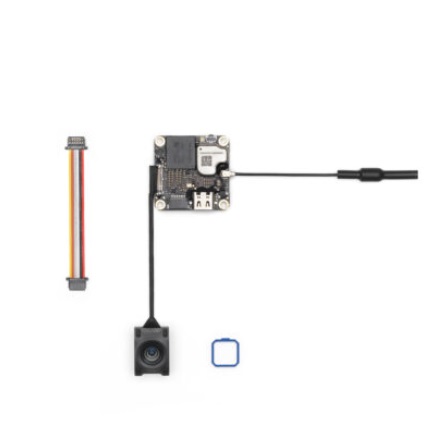

DJI 04 Air Unit Lite

The DJI O4 Air Unit is a high-performance video transmission system designed for FPV drones. Featuring 1080p video transmission at 100fps, it ensures crystal-clear, ultra-low latency footage with a range of up to 10 km. The O4 Air Unit supports a wide dynamic range, delivering vibrant colors and exceptional clarity in various lighting conditions. With robust anti-interference technology, it guarantees stable performance even in challenging environments. The compact, lightweight design makes it an ideal choice for professional pilots seeking top-tier performance without compromising on weight.

New Racing Mode: Unleashed Speed, Unlimited Fun

The DJI O4 Air Unit Series introduces a new Racing mode, ^[2] with video transmission latency as low as 15 milliseconds. ^[3] It supports up to eight aircraft racing simultaneously, ^[4] taking you on an exhilarating, high-speed journey through the skies.

Upgraded Imaging: Cinematic Masterpieces at Your Fingertips

The DJI O4 Air Unit features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/1.3-inch image sensor, supporting 4K/120fps video recording. No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.

Even in Intense Light, Create With Confidence

The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8/16/32). ^[5] Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.

Lightweight Design, Effortless Adaptation

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.

Product Information

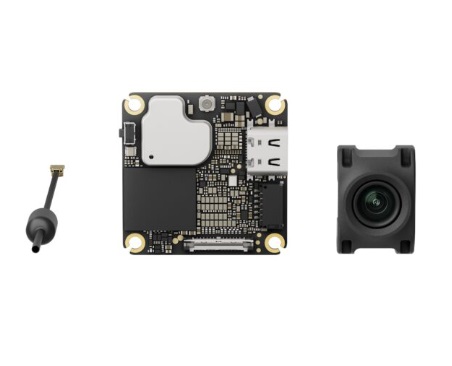

DJI O4 Air Unit Lite

Imaging

• 1/2-inch CMOS
• 4K/60fps Video
• 117.6° Wide FOV

Video Transmission

• O4 Video Transmission, Single-Antenna Design
• 1080p/100fps H.265 Live View Quality
• 20ms Lowest Video Transmission Latency
• 10km Max Video Transmission Range
• 60Mbps Max Video Transmission Bitrate

Built-in Storage

• 23 GB
• Supports microSD card expansion

Weight : 8.2 g

Dimensions : 30×30×6 mm

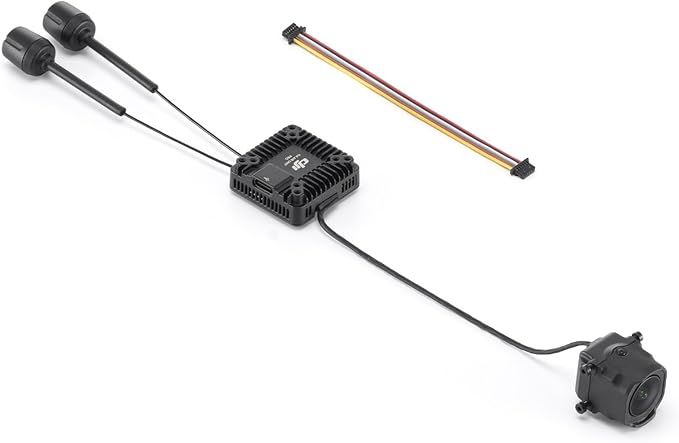

DJI 04 Air Unit pro

DJI O4 Air Unit Pro, Digital Transmission System, 15ms Low Latency, 15km Max Range, 4K/120fps Video Recording, 1080p/100fps Live View, 155° FOV, 1/1.3-inch CMOS Sensor

About this item

1080p/100fps H.265 Max Video Transmission Quality – The DJI O4 Air Unit Pro features a 1080p/100fps max transmission quality, letting users experience crystal-clear feeds for hyper-immersive flight.

15km Max Video Transmission Range – Experience enhanced transmission with a range of up to 15 km [3], enabling you to explore greater distances and capture even more stunning footage with any build.

15ms Lowest Video Transmission Latency – Enjoy even faster, lightning-quick responsiveness to your controls with the DJI O4 Air Unit Pro’s 15ms [5] ultra-low latency.

1/1.3-inch CMOS Sensor – The DJI O4 Air Unit Pro features an upgraded 1/1.3-inch sensor, capturing even higher-quality footage and providing creators with enhanced flexibility in post-production.

4K/120fps, 155° Ultra-Wide FOV Video – Capture every detail with stunning 4K/120fps footage and a 155° ultra-wide FOV, delivering professional-grade results from any flight.

Lightweight, Compact, and Easy to Integrate – The DJI O4 Air Unit Pro remains ultra-light and small, ensuring effortless attachment to your DIY build and smooth operation.

Compatibility: Please pair DJI Goggles N3 or DJI Goggles 3 with the DJI FPV Remote Controller 3. Pair DJI Goggles 2 or DJI Goggles Integra with the DJI FPV Remote Controller 2. Also compatible with DJI Avata 2 ND Filters Set (ND8/16/32).

Imaging

1/1.3-inch CMOS

4K/60fps, 4K/120fps Video

155° Ultra-Wide FOV

10-bit D-Log M Color Mode

Video Transmission

• O4 Video Transmission, Dual-Antenna Design
• 1080p/100fps H.265 Live View Quality
• 15ms Lowest Video Transmission Latency
• 15km Max Video Transmission Range
• 60Mbps Max Video Transmission Bitrate

Built-in Storage

• 4 GB
• Supports microSD card expansion

Weight : 32 g

Dimensions : 33.5×33.5×13 mm
